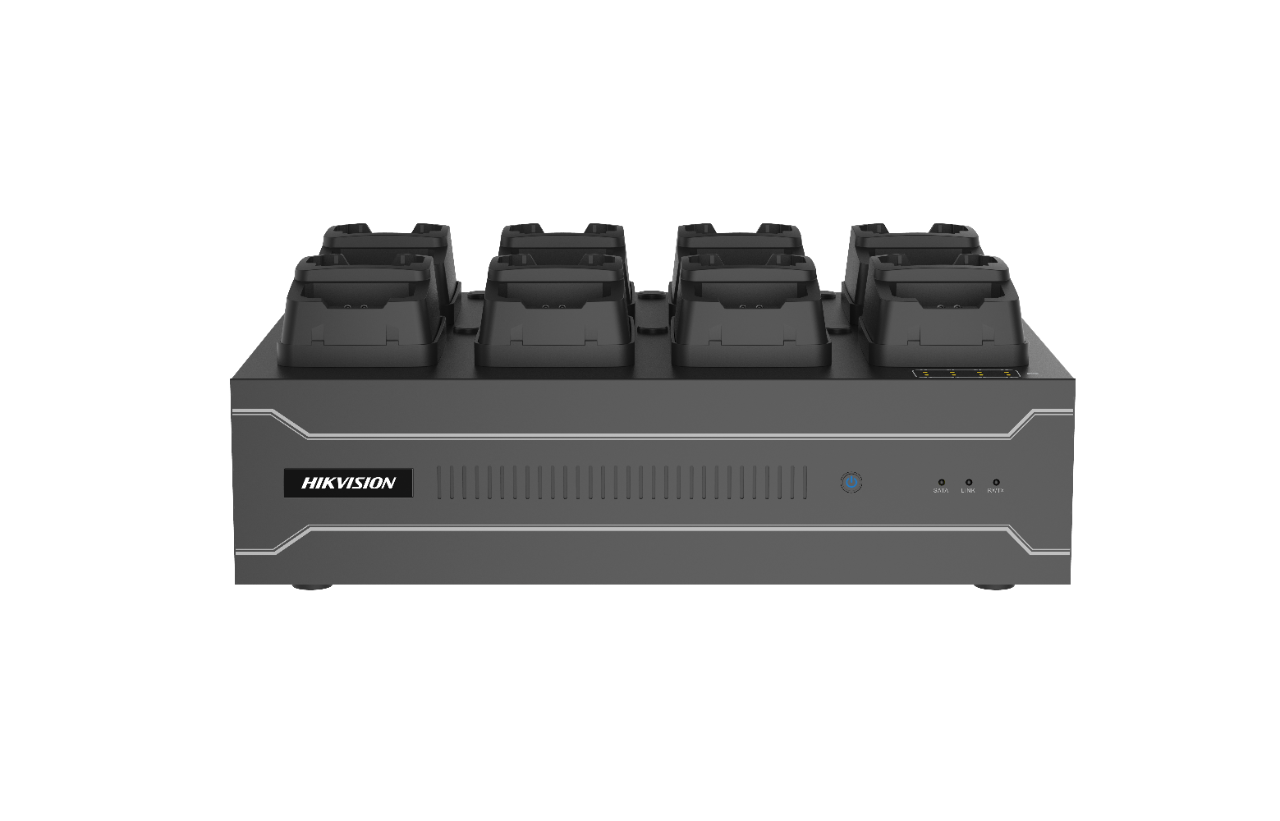

Hikvision DS-MDS001 Desktop 8 ports Dock Station

Screen
LEDNo

Storage
HDDUp to 4 disks, max. 8 TB and default 2 TB for each disk

Network
ProtocolHTTPS, FTP, NTP, SADP, ISAPI

Interface
AudioAudio output: 1 built-in speaker
USBUSB 3.0
Indicator
Power indicator, hard disk indicator, network indicator (1 pair), body camera indicator
× 8

ButtonPower switch
General1000 M dual network interface
Body CameraUp to 8 body cameras
Base5 VDC, 1.5 A for each channel, rate ≥ 8 MB/s
VGANo
HDMINo

General
Operating SystemLinux
PowerInput: 100 to 240 VAC, consumption ˂ 250 W
Operating Condition-10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)
Dimension400 mm × 300 mm × 124 mm (15.75″ × 11.81″ × 4.88″)
Approx. 7.1 kg (15.65 lb.)
Installation MethodDesktop

Approval
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014)

SafetyCE-LVD（EN 62368-1：2014/A11：2017) CB IEC 62368-1:2014 (Second Edition)
